Automatic dosing solution for  thermoformer filling (not included) at 28-35 trays / min.

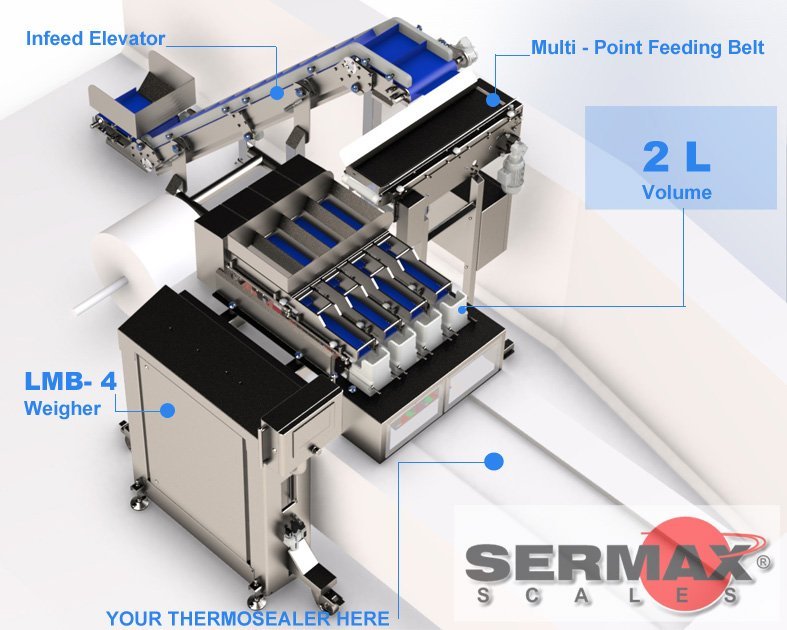

Linear Weigher Exclusive to Sermax Scales ®. LMB 04 – Linear weigher 4 lines + Optionals.

Designed for all types of products up to length or Ø 30 mm / unit piece.

IDEAL for dosing in Thermoformers, Thermosealers and conveyor belts.

Specially designed for sticky, fresh and/or fragile products that cannot be transported with vibrators and that require reduced falls,

High precision and reliability in weighing.

It is composed of the following elements:

  • Linear Weigher Exclusive to Sermax Scales ®. LMB 04 – Linear weigher 4 lines.
  • Production speed : 28-35 Dumps / minute ( * )
  • Accuracy : +1 Piece ( * )

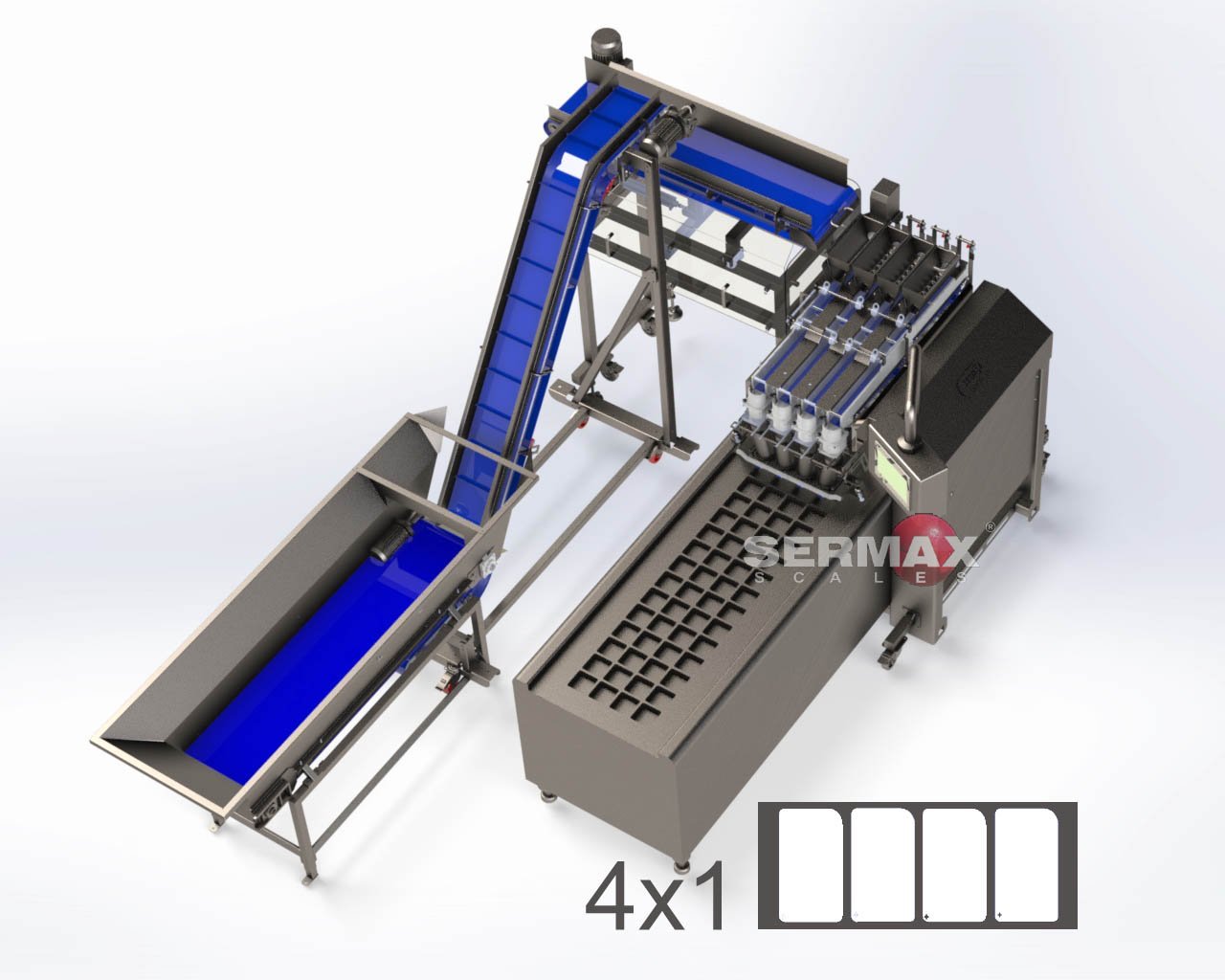

  • Dosing system for a 4×1 format on a thermoformer at 10 advances / minute. (Included)
  • Possibility of adapting the distance between centers of the weighing lines, to adapt it to the container. (See gallery example image)
  • Programmable auto tare.
  • Quick-draw circular weight containers.
  • Maximum product regulation through two levels of fully removable belts.
  • IP-65 step-by-step drive.
  • All elements in contact with the product made of STAINLESS STEEL.
  • Feed hopper Not included – Must be manufactured according to product.
  • Channel closure flaps, which prevents any possible product detachment. (Optional)
  • Container capacity: 0.25 Lts / 0.50 Lts (Other volumes on request)
  • Overweight rejection device (Optional not included)
  • Additional dosing device for 4×2 format (Optional not included)

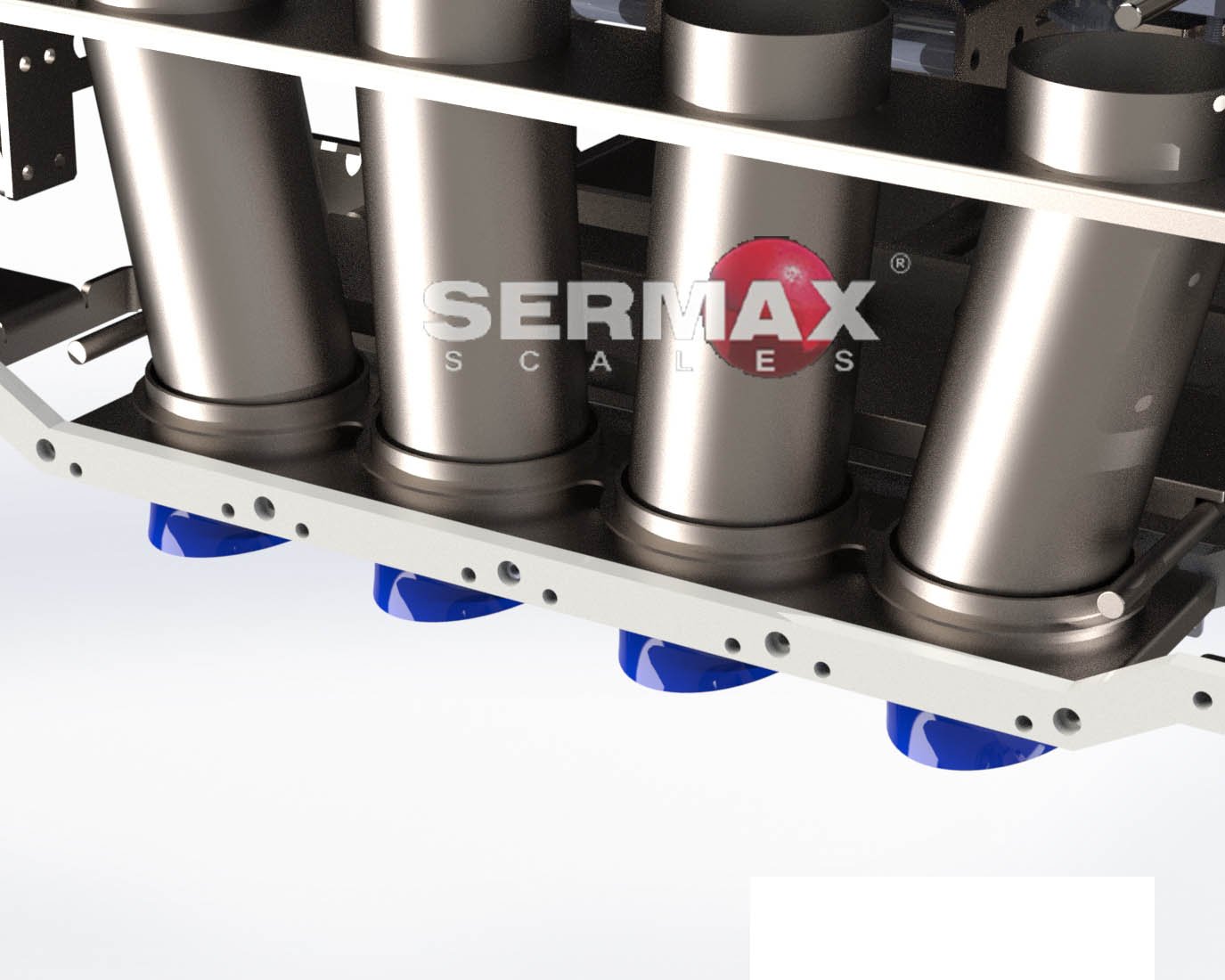

  • Introducer device of the product inside the container »Raise-Lower»
  • Product loading device (Third Level) through Screw Feeders with independent or pneumatic motorization.
  • Product elevator / Product turner.


(*) It is necessary to study samples of the product to validate the final production of this offer.

Check all the recommended Optionals for your LMB 04

( See Recommended Products below )


Exclusive Sermax Scales ® weighing machine.
