(EN)LMB05 Complete Solution 35-50 Dpm on your packaging machine (10 steps/min of 5×1)
Enquiry / Consultar
LMB 05 – Pesadora Lineal – Hasta 50dpm / 250 Gr
Disponible para reserva

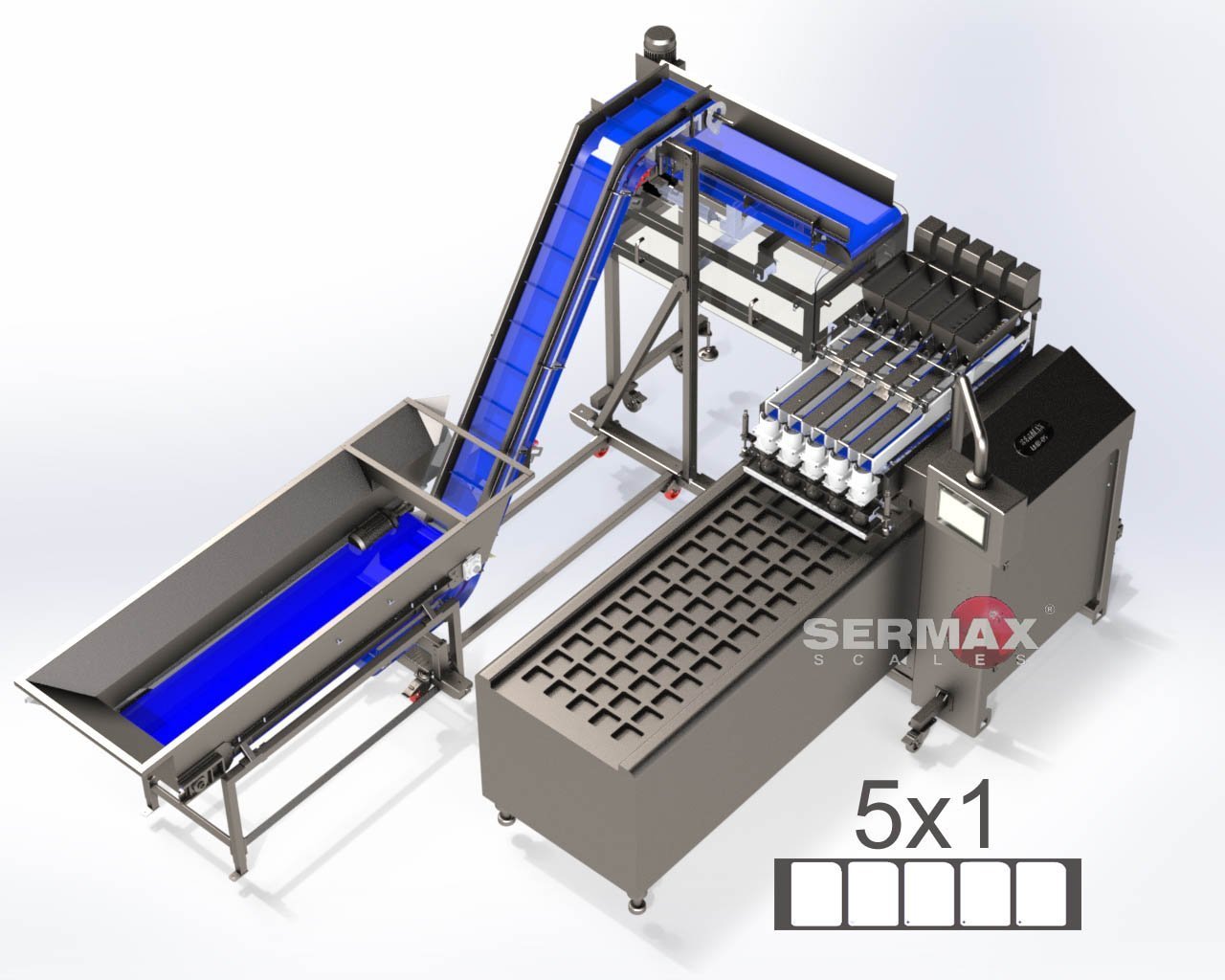

Dosing solution for a thermoformer (not included) at 35-50 trays / min.
Linear Weigher Exclusive to Sermax Scales ®. LMB 05 – Linear weigher 5 lines + Optionals.
Designed for all types of products up to length or Ø 30 mm / unit piece.
IDEAL for dosing in Thermoformers, Thermosealers and conveyor belts.
Specially designed for sticky, fresh and/or fragile products that cannot be transported with vibrators and that require reduced falls,
High precision and reliability in weighing.
It is composed of the following elements:
- Linear Weigher Exclusive to Sermax Scales ®. LMB 05 – Linear weigher 5 lines.
- Production speed : 35-50 Downloads / minute ( * )
- Accuracy : +1 Piece ( * )
- Dosing system for a 5×1 format on a thermoformer at 10 advances / minute. (Included)
- Possibility of adapting the distance between centers of the weighing lines, to adapt it to the container. (See gallery example image)
- Programmable auto tare.
- Quick-draw circular weight containers.
- Maximum product regulation through two levels of fully removable belts.
- IP-65 step-by-step drive.
- All elements in contact with the product made of STAINLESS STEEL.
- Feed hopper Not included – Must be manufactured according to product.
- Channel closure flaps, which prevents any possible product detachment. (Optional)
- Container capacity: 0.25 Lts / 0.50 Lts (Other volumes on request)
- Overweight rejection device (Optional not included)
- Additional dosing device for 5×2 format (Optional not included)
- Introducer device of the product inside the container »Raise-Lower»
- Product loading device (Third Level) through SCREW-FEEDER with independent or pneumatic motorization.

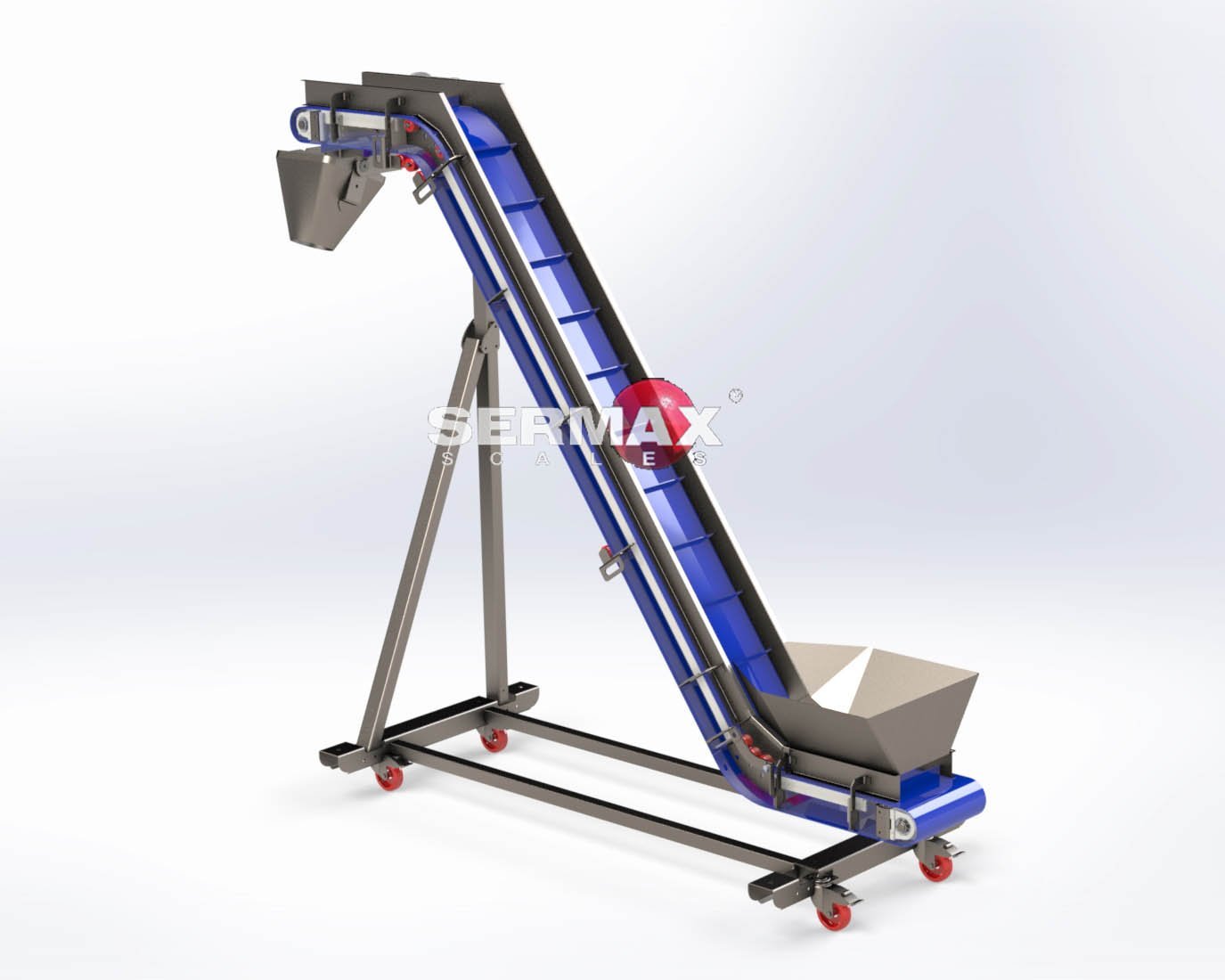

- Product elevator / Product turner.
- WATCH VIDEO
- SEE CATALOG
(*) It is necessary to study samples of the product to validate the final production of this offer.
Check all the recommended Optionals for your LMB 05
( See Recommended Products below )
